Description

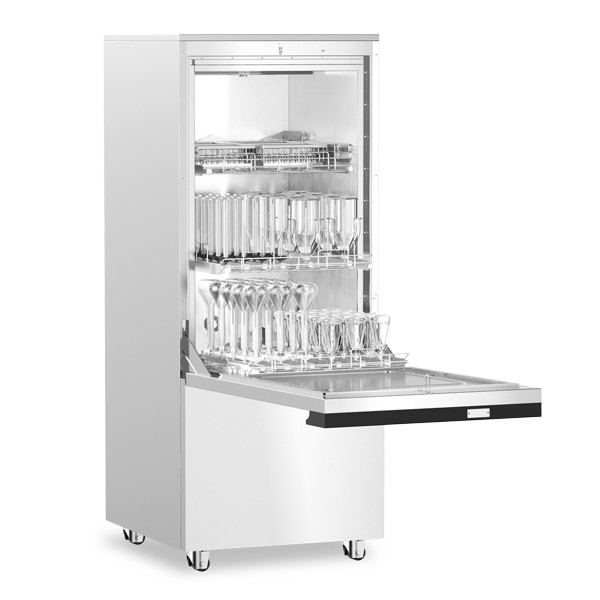

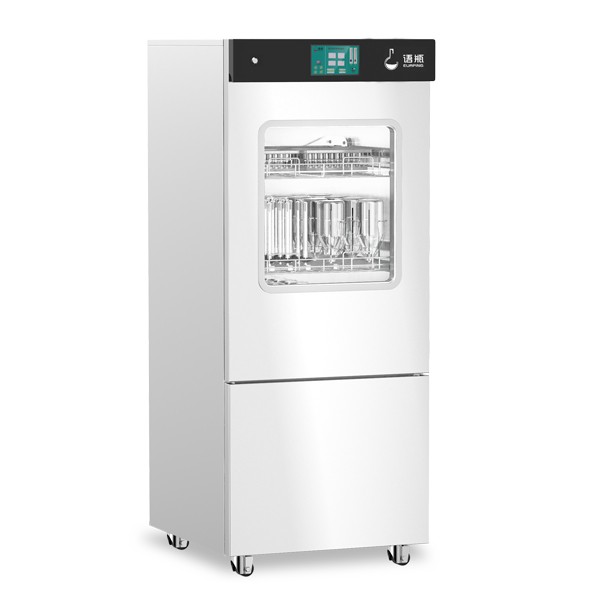

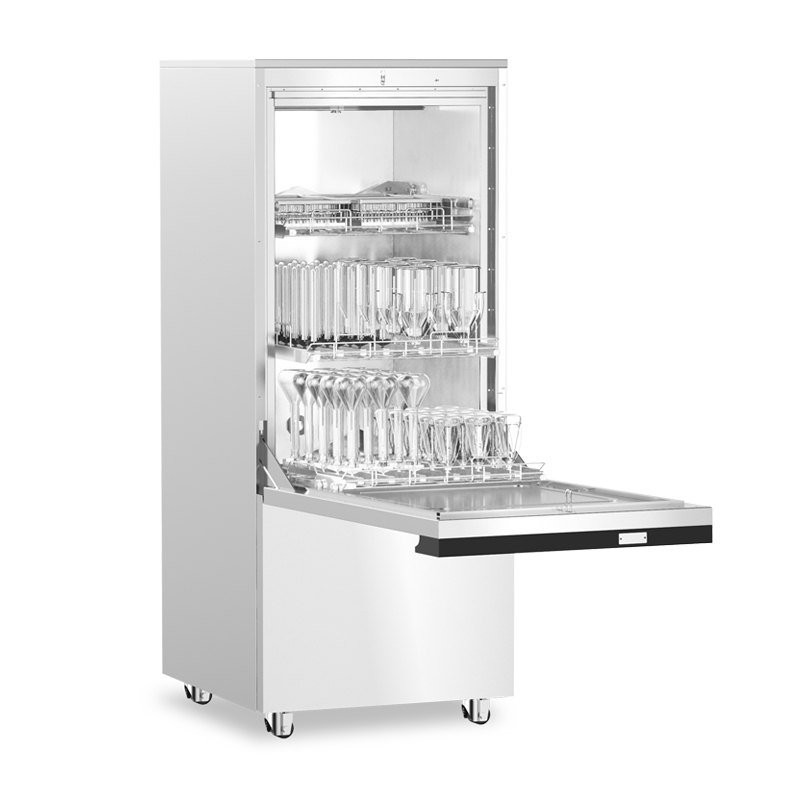

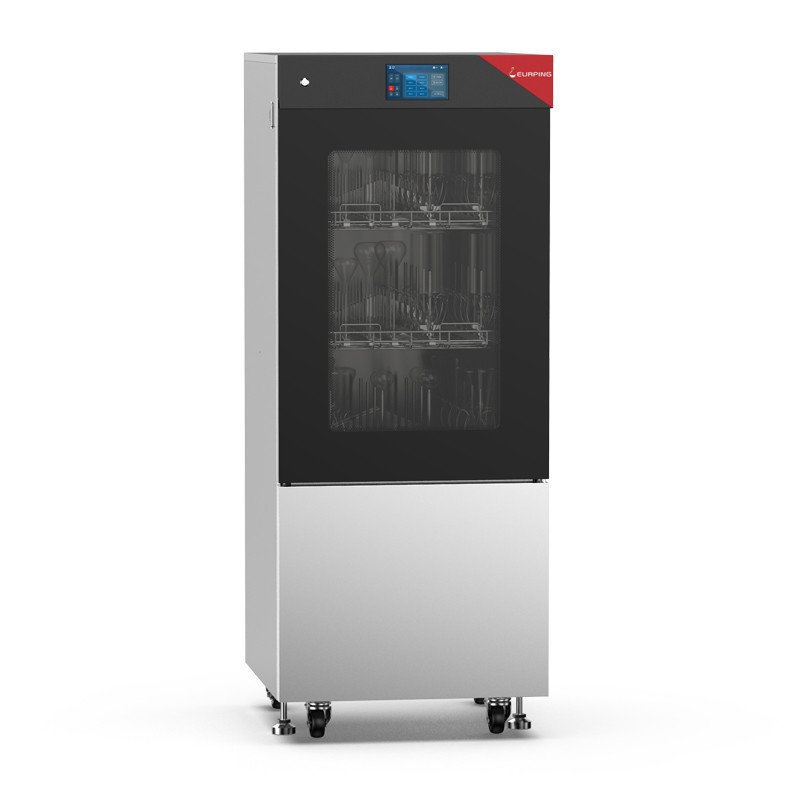

Laboratory glassware washer - LW320H
LW320 laboratory glassware washer adopts microcomputer chip control technology with 7 inch full color OLED LCD touch screen operating system.
A variety of cleaning procedures were setted, including 30 standard procedures(such as fast cleaning、grease、biological、lubricating oil, etc.)and 120 self-defined procedures, in each self-defined procedure, the user can adjust various cleaning parameters such as water source, cleaning temperature, cleaning agent type and addition amount, circulating water pump frequency and save them automatically.
Double circulation pump adopts variable frequency soft-start function, avoiding damage to glassware caused by excessive water pressure when the pump is started, the circulating water can be adjusted from 0-800L/min by adjusting the frequency of the water pump during cleaning process.
Technical parameter
Microcomputer control system
7 inch full color touch screen
Chamber material: 316 stainless steel
Shell material: 304 stainless steel
Pipe material: 316 stainless steel+pharmaceutical silicone
Circulating water volume:800L/min
Circulation pump with variable frequency soft-start function
Cleaning data save with U Disk
Printer:RS232 interface
Peristaltic pump with double channel
Alarm for lack of cleaning agent
Power:380V,50Hz
Heating power:9KW
Basket design :FL-EXCH module
EULA electric door opening and closing technology
Water heating over temperature protection
Hot air heating over temperature protection
Water pump over temperature protection
Fan over temperature protection
Monitoring water leakage
Flowmeter to measure water
Pipeline pressure monitor
Multi-layer filtration system
HEPA drying system
Double spray heat exchange system
Peristaltic pump:1
Air volume: 220m3/h
Number of users:12
Four level authority
Chamber volume:317L
Inner Dimensions:546mm(L)*572mm(W)*716mm(H)
External Dimensions:670mm(L)*757mm(W)*1650mm(H)
