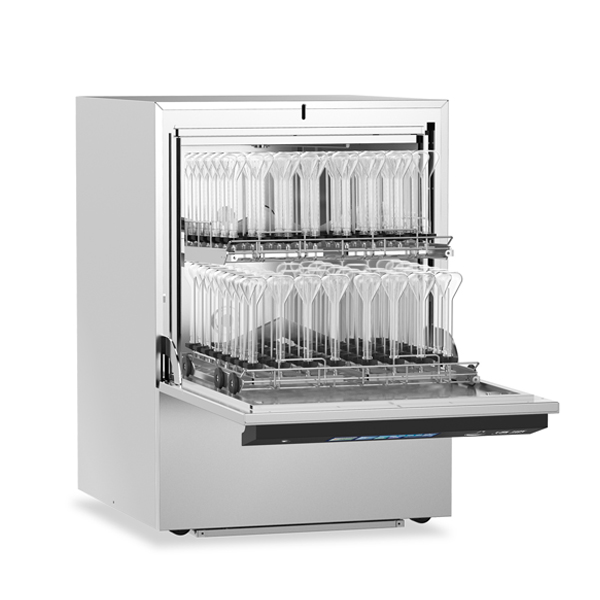

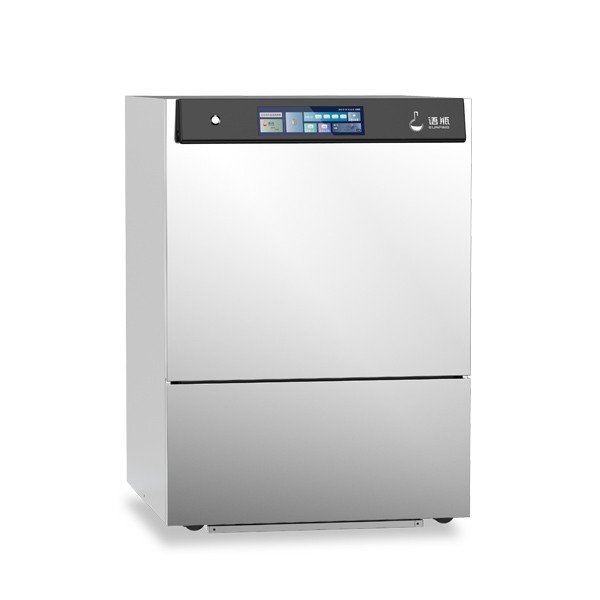

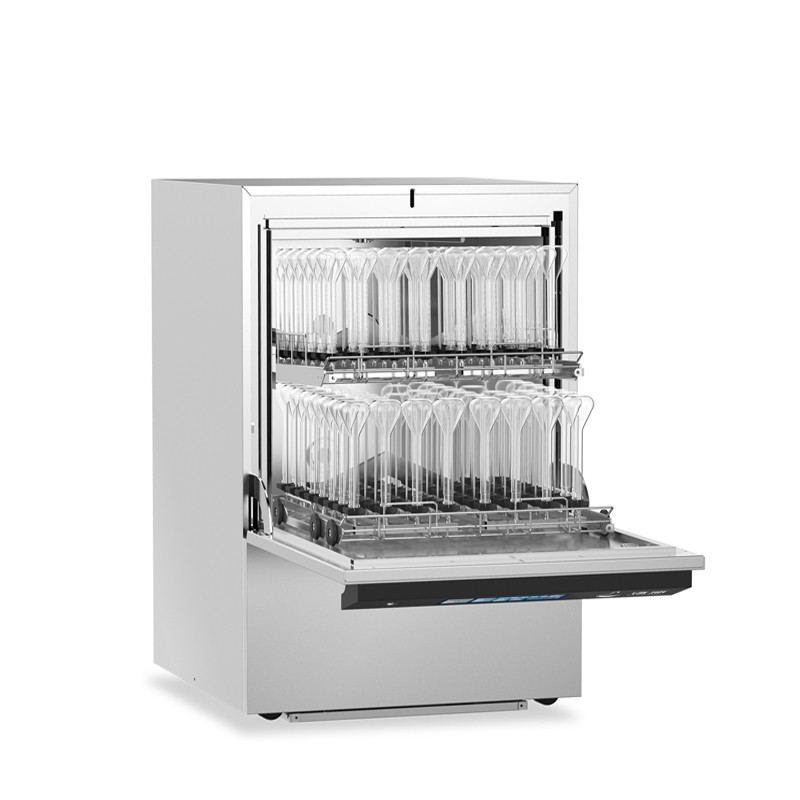

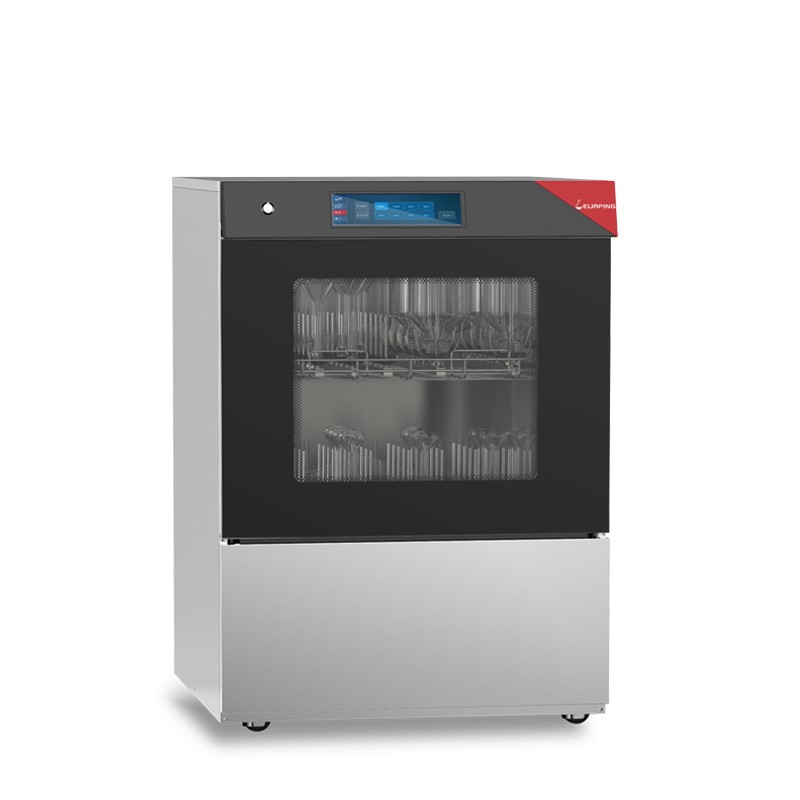

LW190 Plus Laboratory glassware washer

Description

Laboratory glassware washer - LW190 Plus

Microcomputer chip control technology (non-PLC) with 8.8 inch full color OLED LCD touch screen，including 30 standard procedures and 120 self-defined procedures.

LW190 Plus laboratory glassware washer adopt variable frequency soft-start function control the circulation pump from 0-400L/min.Pipeline pressure monitor monitors the pressure of the main pipeline in real time.

LW190 Plus adopts the back water supply method for basket and rack.

Electronic safety lock, EULA electric door opening and closing technology, the experimenter can set the door opening temperature limit.

Water heating over temperature protection, hot air heating over temperature protection, water pump over temperature protection, fan over temperature protection.

Monitoring water leakage,The instrument will stop working if water leakage;

The instrument will recovery automatically after water cut and memory if the power cut off;

The instrument have the remind function when the cleaning agent is lacking;

Multi-layer filtration system: prevent debris from entering the pipeline and causing blockage;

Technical parameter

Microcomputer control system

8.8 inch full color touch screen

Chamber material: 316 stainless steel

Shell material: 304 stainless steel

Pipe material: 316 stainless steel+pharmaceutical silicone

Circulating water volume: 500L/min

Circulation pump with variable frequency soft-start function

Cleaning data save with U Disk

Printer: RS232 interface

Peristaltic pump with double channel

Alarm for lack of cleaning agent

Power: 220V,50Hz

Heating power: 4KW

Basket design :FL-EXCH module

EULA electric door opening and closing technology

Water heating over temperature protection

Hot air heating over temperature protection

Water pump over temperature protection

Fan over temperature protection

Monitoring water leakage

Peristaltic pump:2

Air volume: 110m³/h

Number of users:3

Three level authority

Chamber volume:185L

Inner Dimensions:546mm(L)*575mm(W)*607mm(H)

External Dimensions:670mm(L)*691mm(W)*940mm(H)
