Description

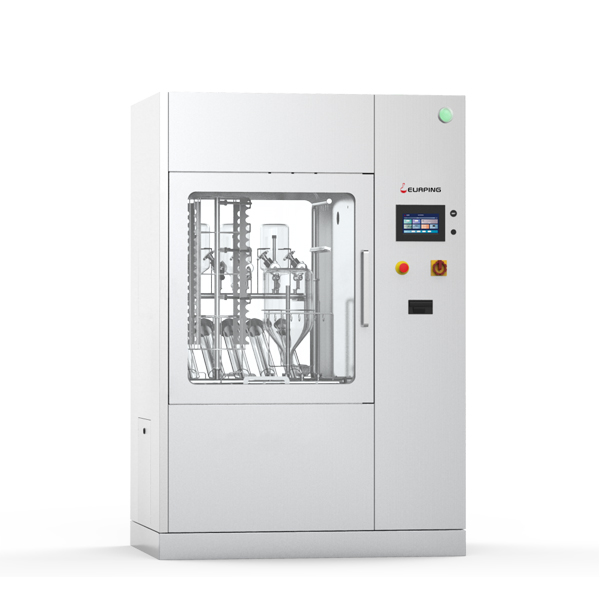

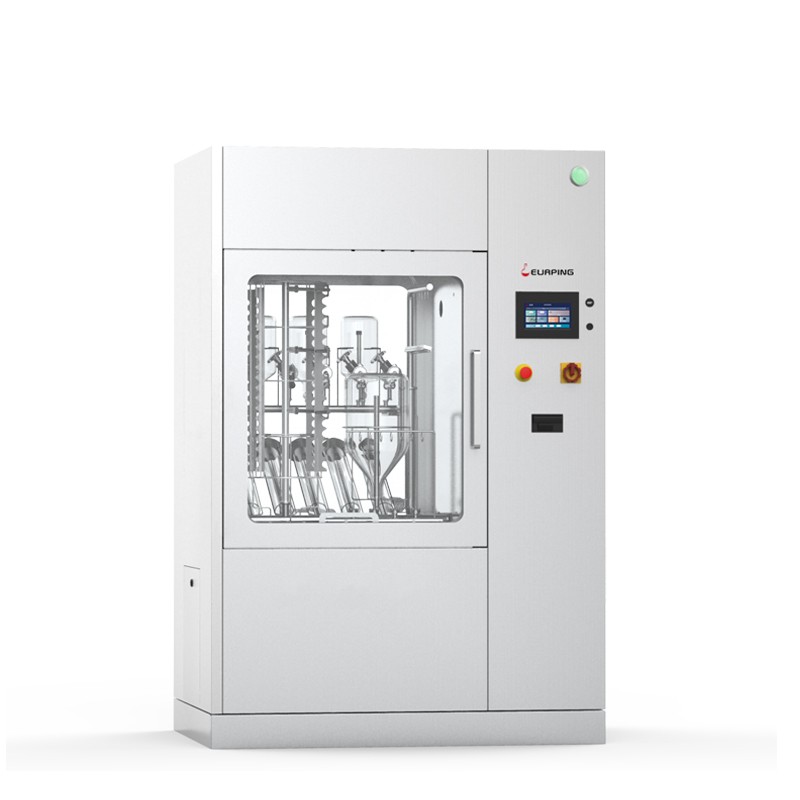

GMP washers - Poseidon600
Siemens S7-1200control system with 7 inch full color touch screen, including 10 standard procedures and 10 self-defined procedures. The cleaning program can be programmed according to user needs and cycle phase、temperature、cleaning agent dosage、inlet water source and other key process parameters also can be programmed. Once a cycle starts to run, the programmed cycle parameter values will be locked and cannot be changed until the cycle is completed.
The control system also includes a service mode: preventive maintenance、find and solve the fault, equipped with a service diagnostic program, which can perform system detect and review of the components.
AISI316L is used to manufacture circulating water pumps,the pump casing and impeller are polished to reach a smoothness of Ra≤0.6μm, eliminating residual chemical substances;
The circulation pipeline is equipped with a pressure monitoring system, and the screen displays the pressure of the cleaning spray in real time; when the cleaning water pressure is abnormal, the operation of the circulating pump is suspended.
The spray arm rotation speed sensor monitors the cleaning status in real time during the whole process, if there is an abnormality in the spray cleaning, the machine will stop working and wait for confirmation.
Compression fan drying system and dry air reaches the inside of the utensils directly through the basket
Technical parameter
Simen S7-1200 PLC Control System
7 inch full color touch screen
10 standard procedures and 10 self-defined procedures
Chamber material: 316 stainless steel
Shell material: 304 stainless steel
Pipe material: 316 stainless steel+pharmaceutical silicone
Circulating water volume:800L/min
Cleaning data save with U Disk
Audit trail: U Disk
Printer:RS232 interface
Circulating pump with soft start
Pipeline pressure sensor displayed in screen
Three level authority management
LIMS connect: Support handshake protocol
Cleaning agent chamber:6kg/bucket*2
Alarm for lack of cleaning agent
Cleaning temperature:25-93℃
Drying temperature:25-120℃
Drying fan power:700W/Fan
Hot air heating power:6000W
Hot air circulation:270m3/h
Chamber volume:688L
Inner Dimensions:830mm(L)*830mm(W)*1000mm(H)
External Dimensions:1540mm(L)*950mm(W)*1990mm(H)
