Description

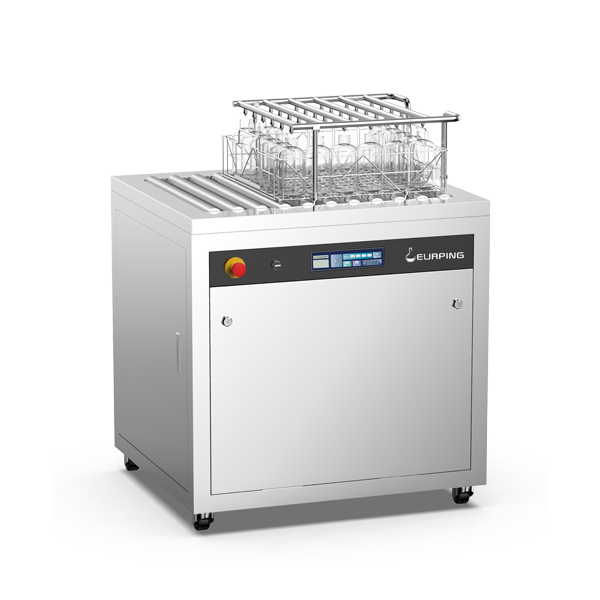

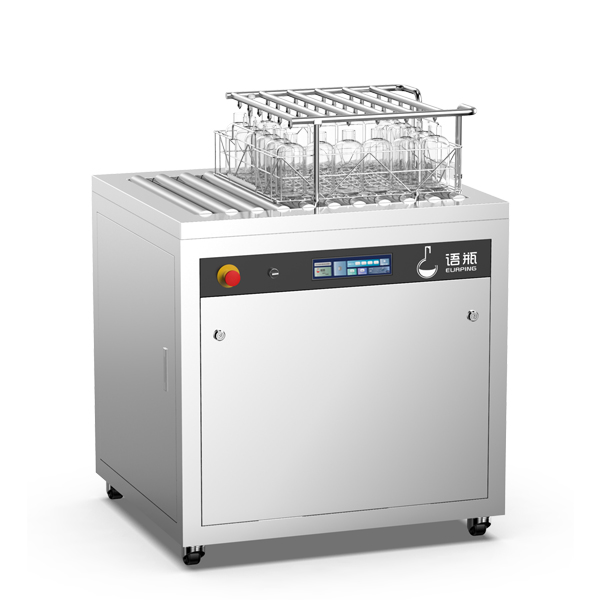

Automatic drinking water filling system IVC-700
Automatic filling system for canning of drinking bottles in animal laboratories
Microcomputer chip control, 8.8-inch full-color touch screen display operating system, no less than 256-color color display system
Color change reminds the working status of the machine, red means malfunction, yellow means standby, and green means running
Equipped with emergency stop switch and control switch
Canning volume can be adjusted in the program
Peristaltic pumps are mixed into the system, one pump adds mineral solutions, acids or other liquids as needed, and the second pump adds disinfectants according to needs for disinfection of canned pipelines
Program：Pipe emptying→Enter pure water containing disinfectant→Immersion disinfection→ Drain disinfectant→Rinse→Drain.
Canned pipeline is customized according to the size of the user's drinking bottle
One-to-one design of water injection nozzle to accurately fill each water bottle
Drinking bottle frame is customized according to the size of the user's drinking bottle
water inlet adopts stainless steel DN50.5 chuck
water supply pipeline is not less than DN20
Rely on pure water pressure for filling
Drainage pipe diameter> 25mm
External Dimension:≤720mm(W)*1000mm(D)*1000mm(H)
